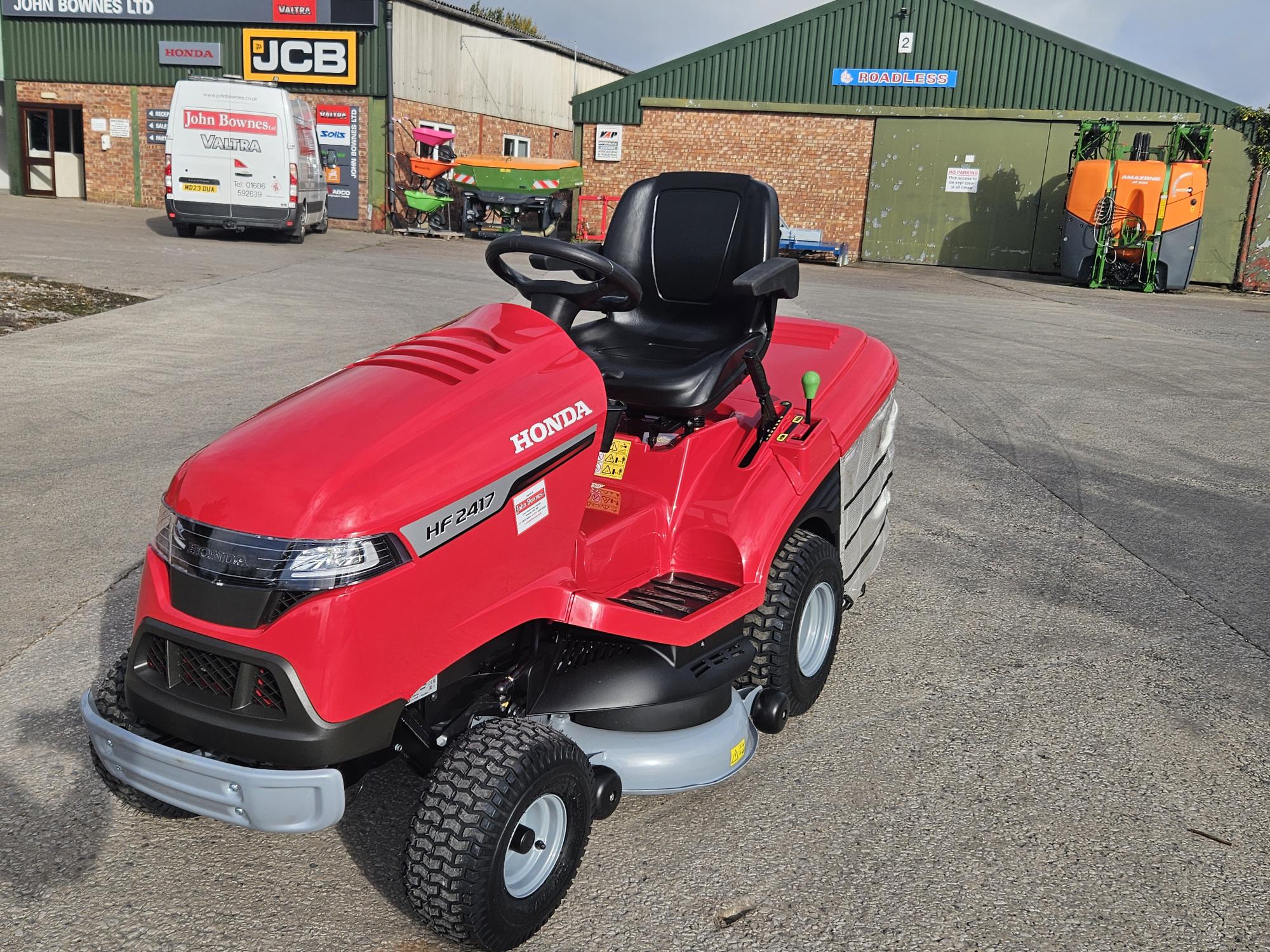

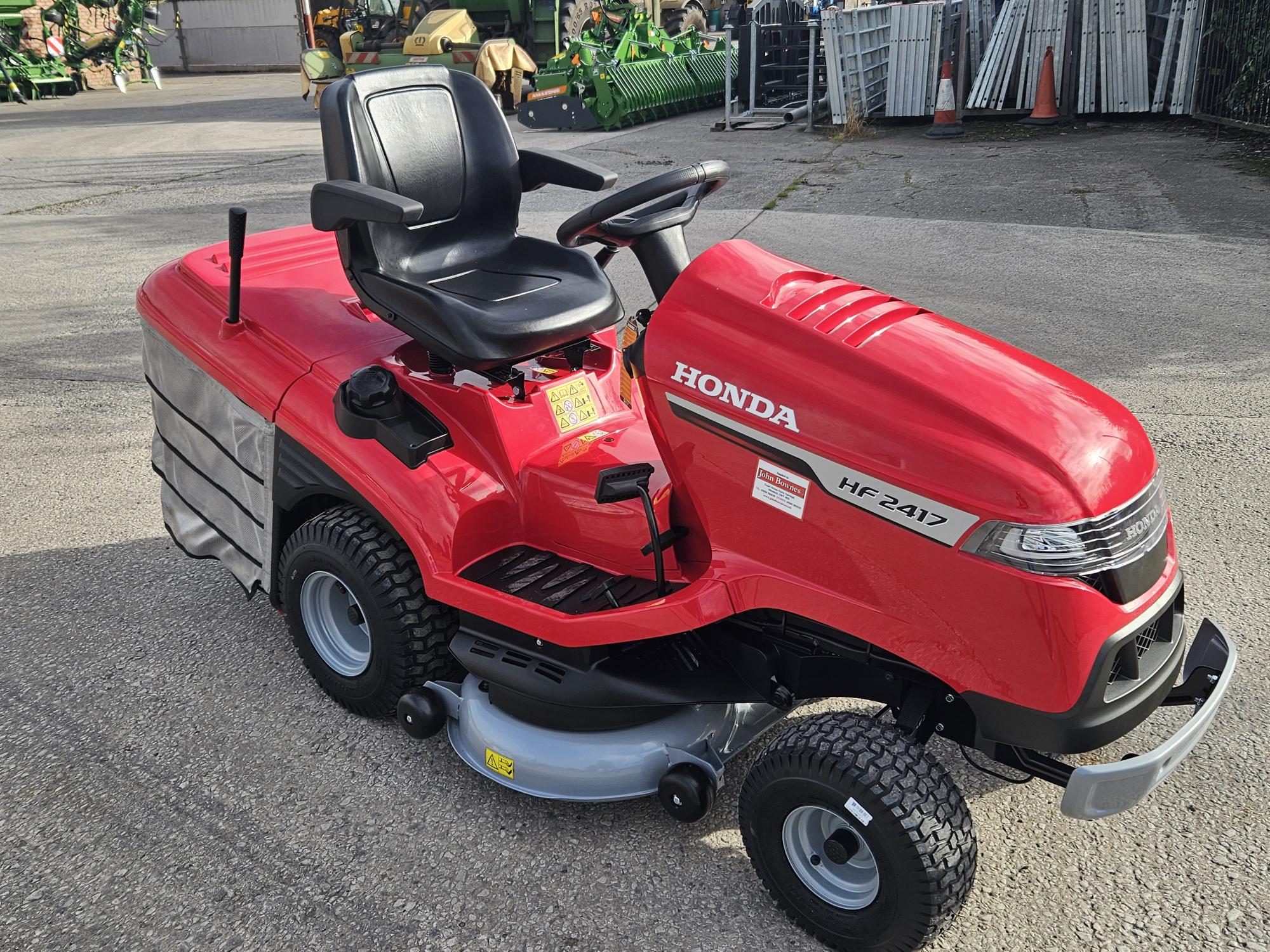

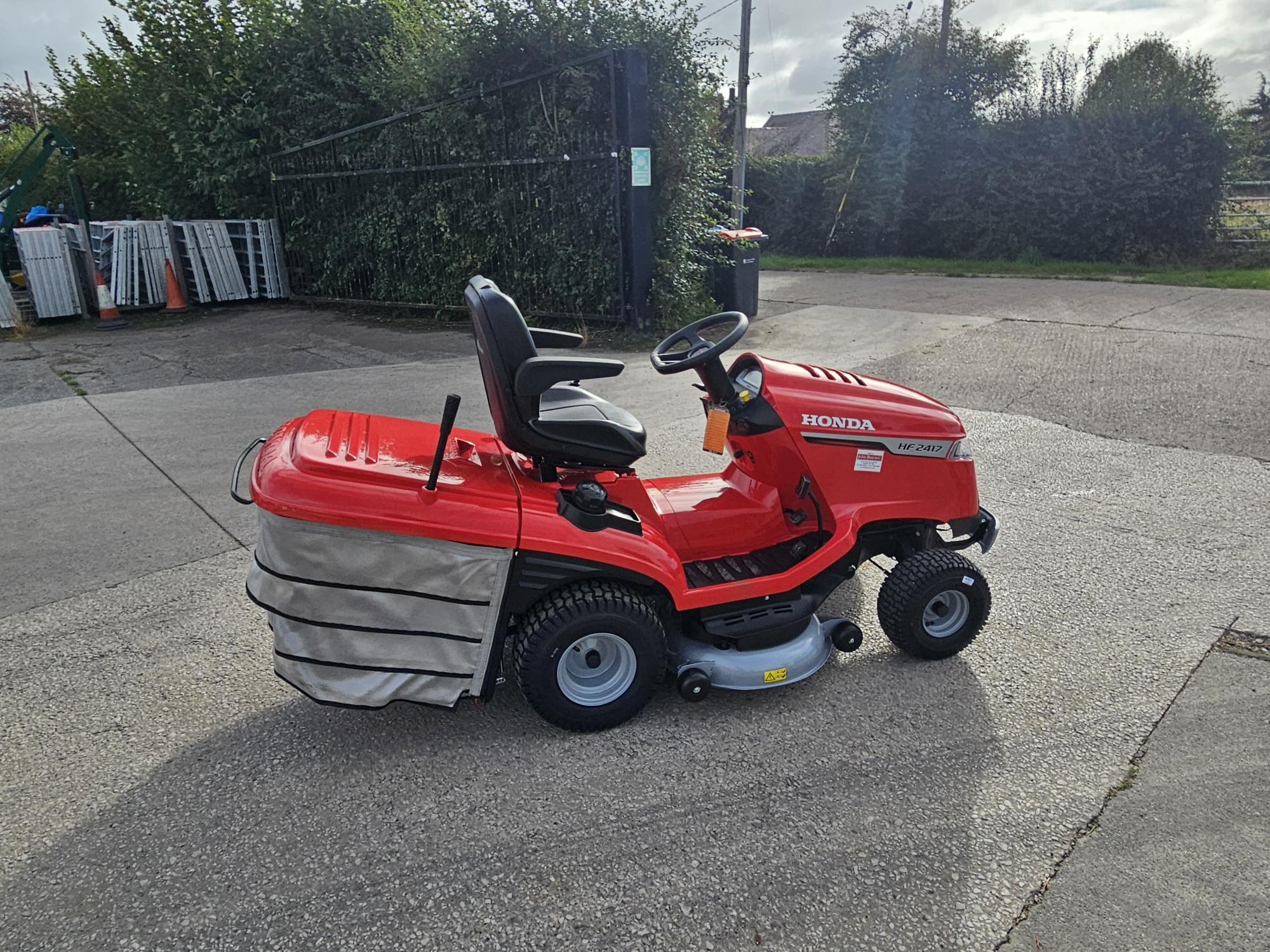

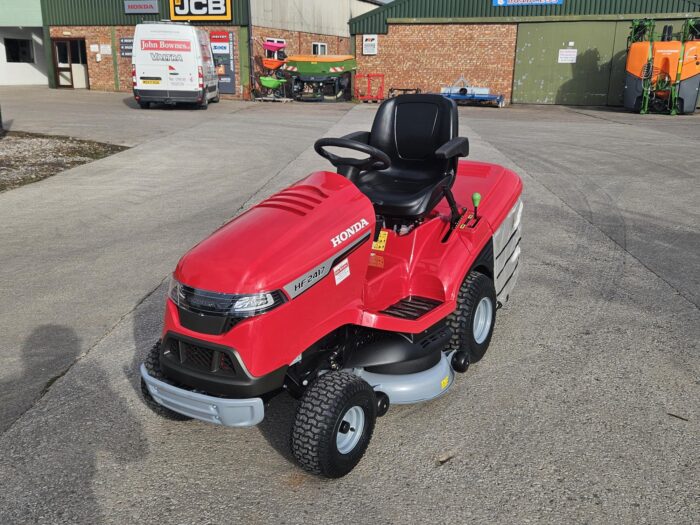

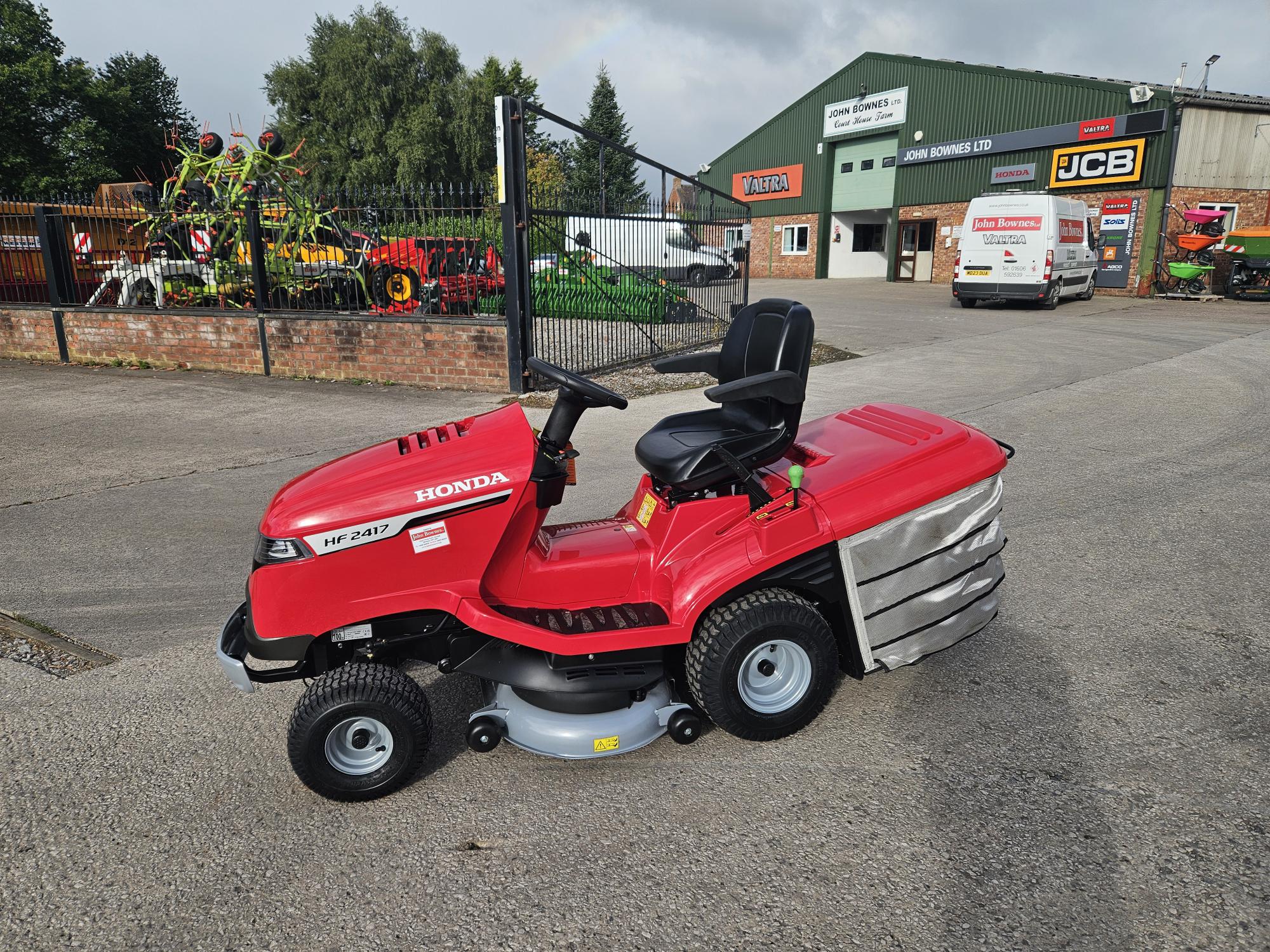

HONDA HF2417HME RIDEON MOWER
The HF2417HME is part of Honda’s HF2417 HM range of ride‑on garden tractors. It’s a “premium” specification model, aimed at large domestic gardens (or smaller commercial use) with high build quality, good comfort, and fairly advanced features.
Key Specs & Features
Here are its main technical details and features:
| Feature |
Detail |
| Engine |
Honda GCV530 V‑Twin, 4‑stroke OHC, 530 cc. Around 17 hp for the UK models |
| Transmission |
Hydrostatic (variable speed) drive. Single pedal forward/back. |
| Cutting Deck |
102 cm (40″) mid‑mount, with 2 synchronous blades. |

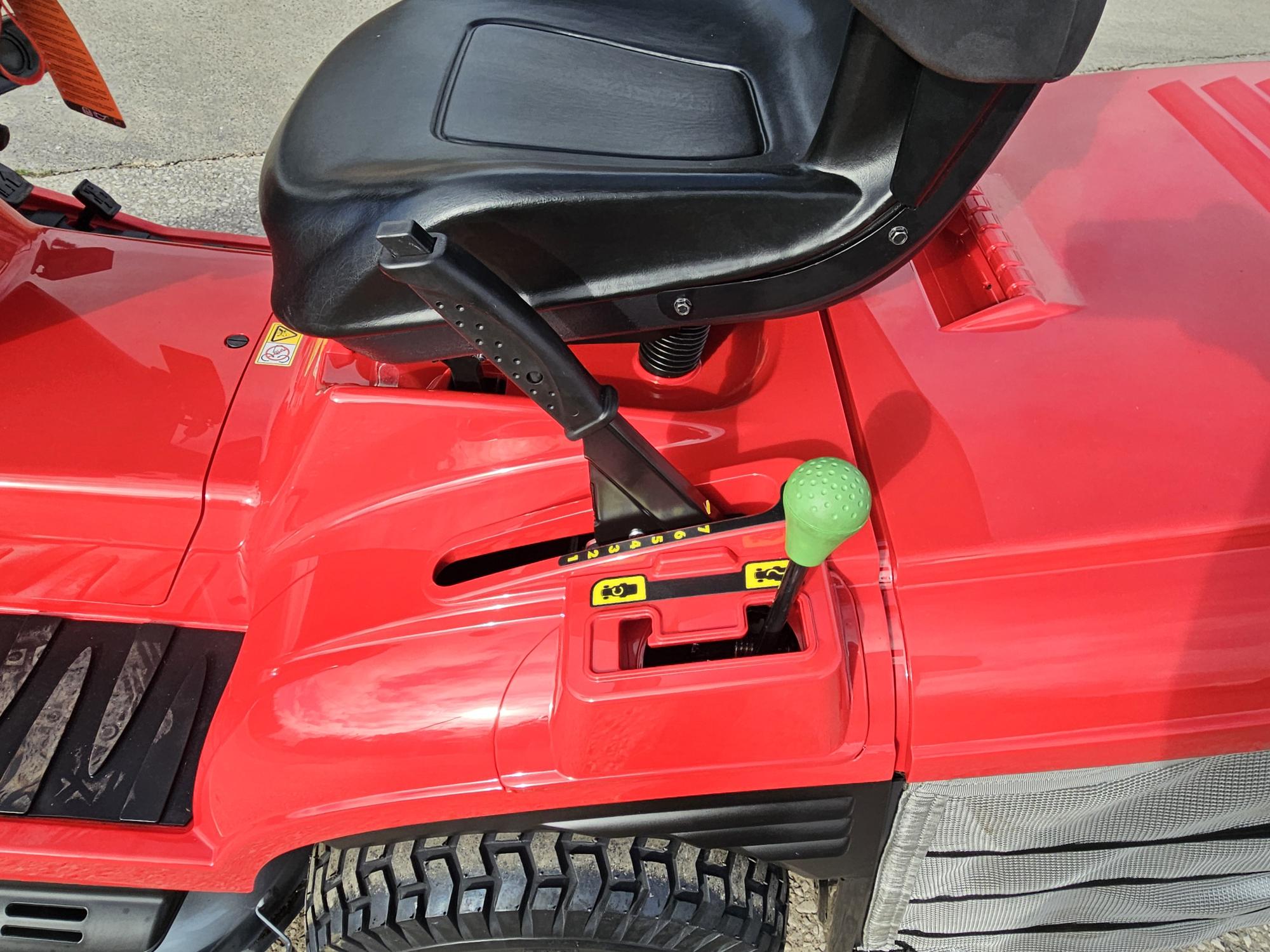

| Cutting Heights |
7 positions, ranging from about 30‑90 mm (some sources say from 25‑90 mm). |

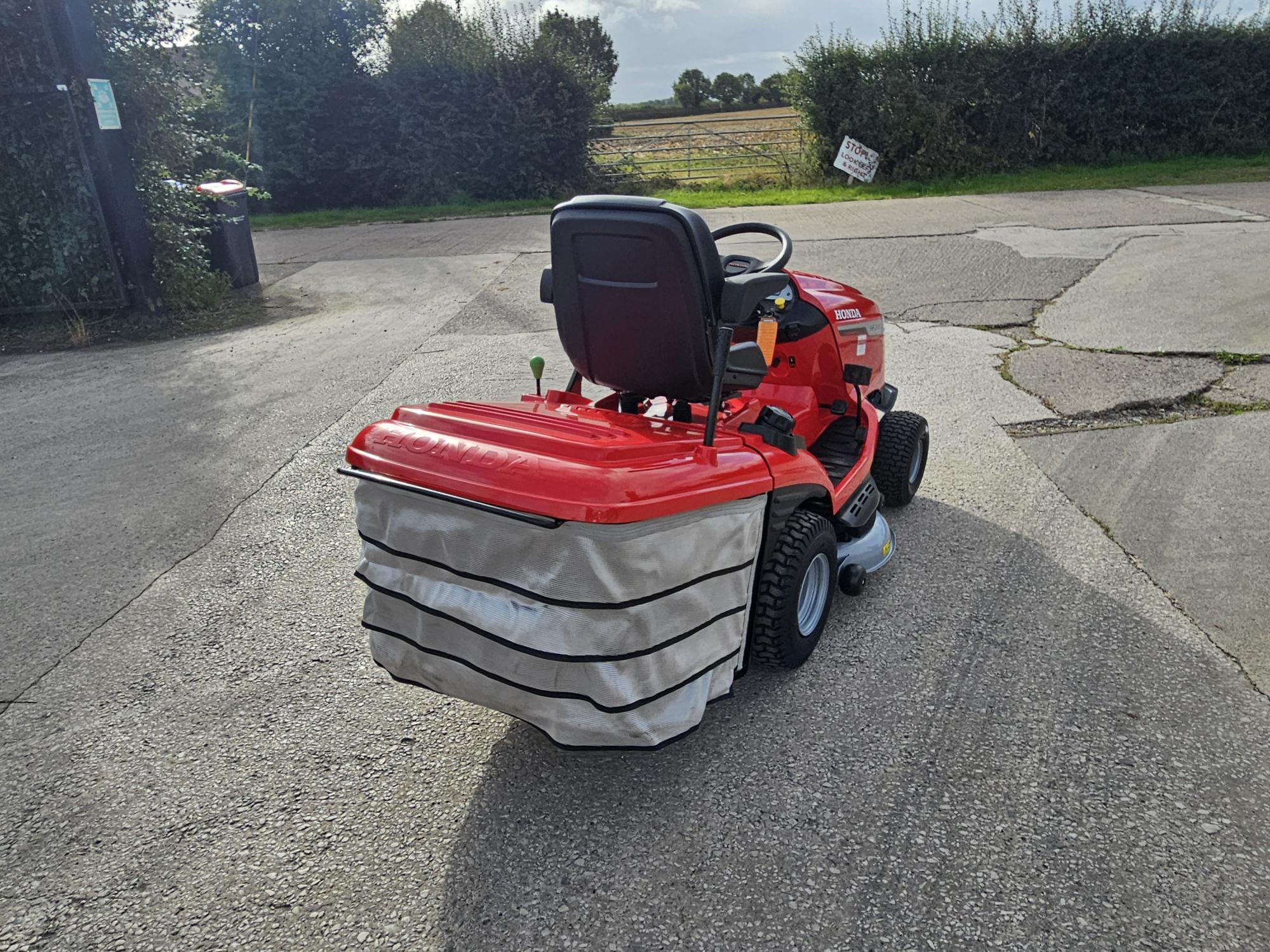

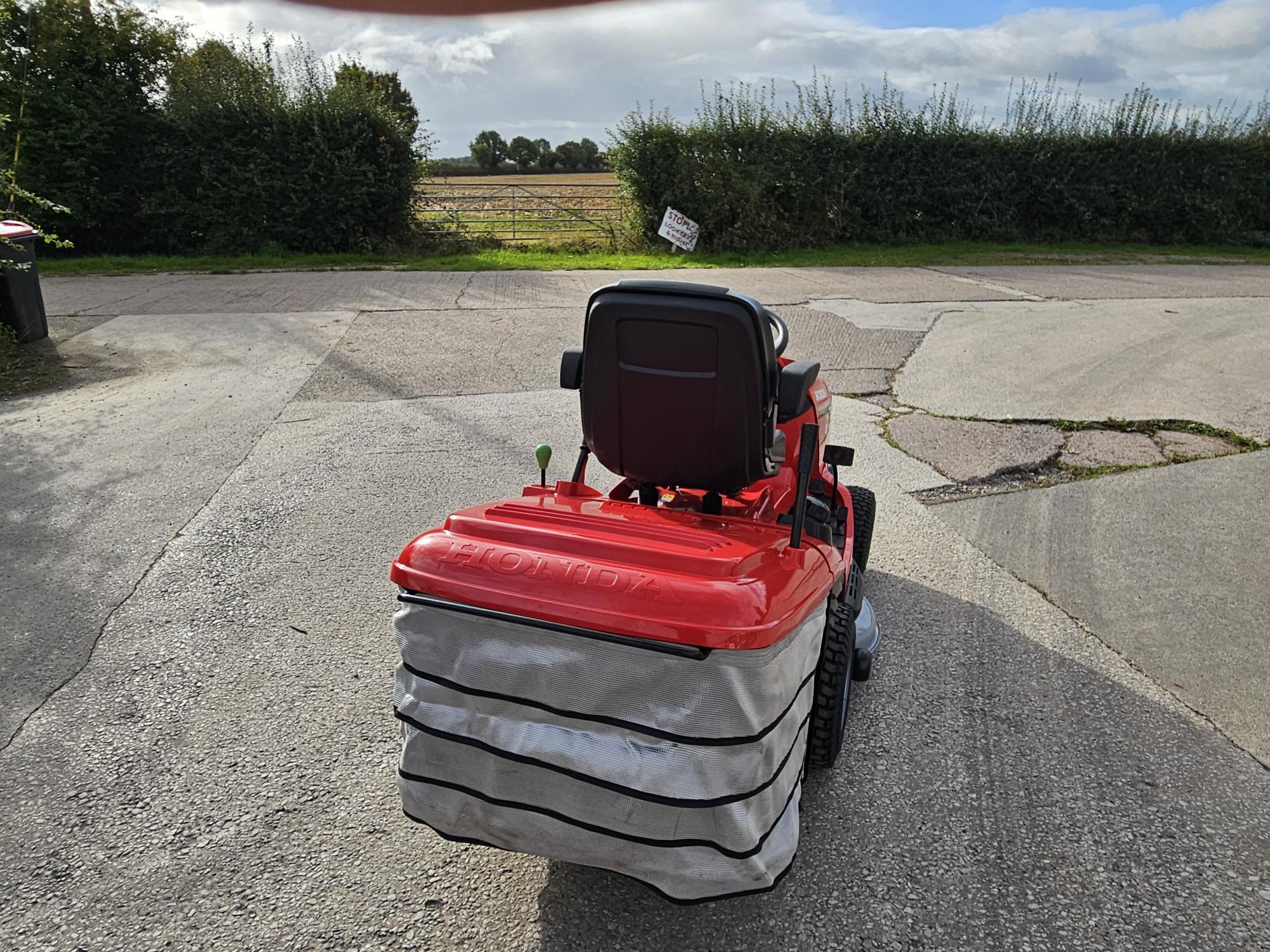

| Grass Collector |
300 litres. Large capacity, so fewer stops to empty. |
| Special Systems |
Versamow™ selective mulching (you can choose to collect grass or mulch it) Optiflow for improved airflow under deck and to collector, helping with collecting performance, especially with damp grass. |
| Blade Engagement |
Electromagnetic blade clutch (you press a button to engage blades) |
| Additional comfort / build‑features |

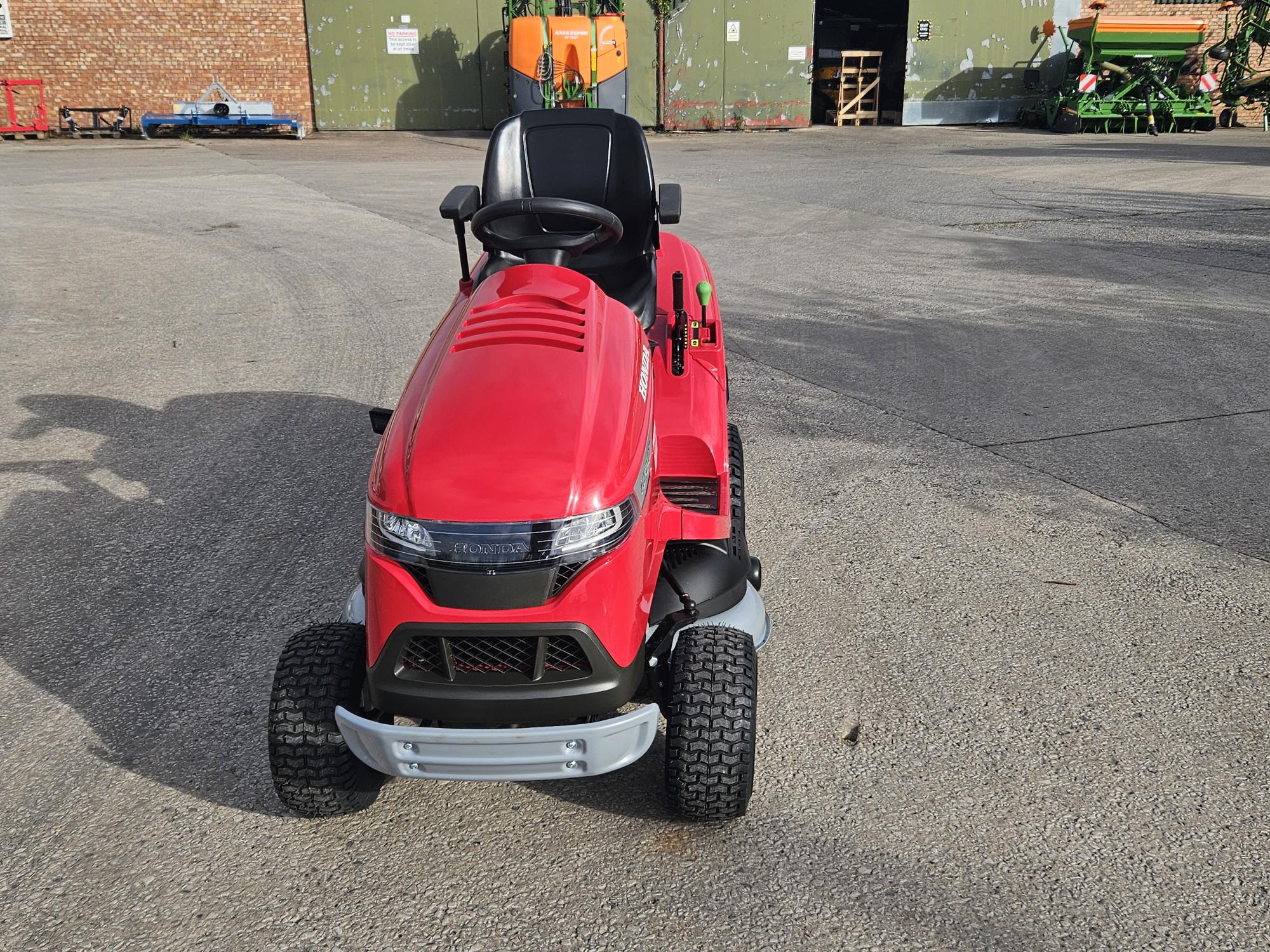

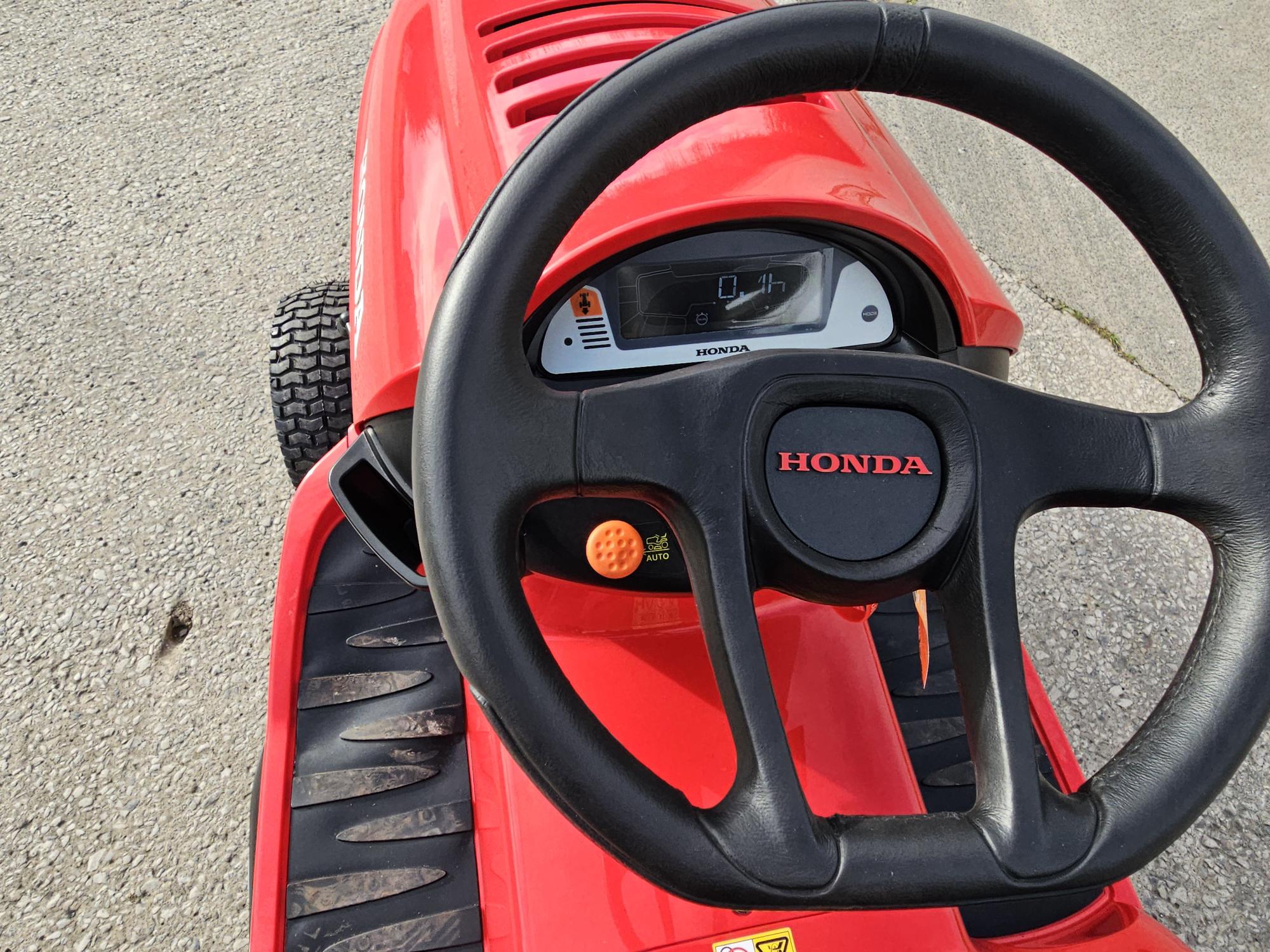

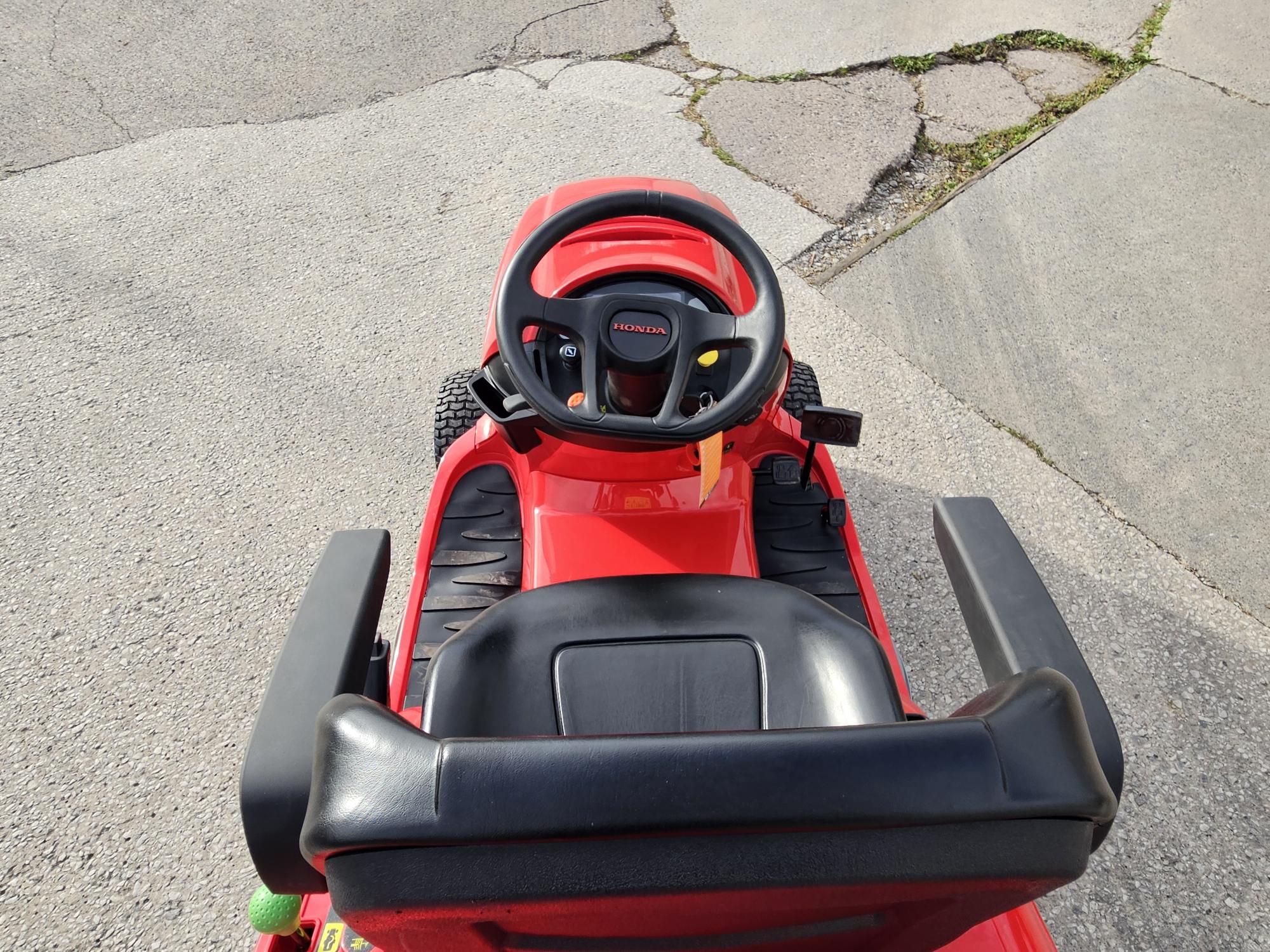

Big seat (often padded, with armrests), LCD display/dashboard, LED headlights, USB port/device holder, anti‑scalp wheels, bumper protection, strong frame, and good tyres. |
| Speed |
Forward speeds up to approx 8.2 km/h under hydrostatic drive. Reverse slower. |
|
|
|
|
|
|
-
Good capacity & cutting width — the 40‑inch / 102 cm deck and 300 L collector are generous; less stopping to empty.
-
Mulching option (Versamow) is useful: gives flexibility to do clean collection or to mulch (helping return nutrients to soil).
-
Optiflow + synchronized twin‑blades help with better collection, even in damp conditions, and cleaner finish when mowing, especially around turns.
-
Comfort & usability — comfortable seating, modern controls, LED lighting, USB etc. make it more pleasant and easier to use for larger areas.
-
Drive system — hydrostatic drive gives smooth control, not jerky gear changes; useful in variable terrain.
-
Build quality — strong frame, anti‑scalp wheels to protect lawn and deck, decent tyres; generally feels robust.
Who it’s good for
This mower is best suited for:
-
Very large lawns / estates; anything up to ~1.5 acres or more.
-
Users who want both collection and mulching, so flexibility is important.
-
Those who want comfort and convenience features (good seat, lights, modern dashboard etc).
-
Users who don’t mind investing in maintenance and want a long‑term machine.
- Full specification
| Blade brake clutch |
Electromagnetic |
| Optiflow |
Yes |
| Grass bag dumping |
Manual |
| Positions and cutting |
7 |
| Noise value – sound power level (dB(A)) |
100 |
| Mulching |
Versamow™ selective mulching |
| Rear deflector |
Optional |
| Tow hitch |
Optional |
- Dimensions
| Length (mm) |
2445 |
| Width (mm) |
1060 |
| Height (mm) |
1230 |
| Dry weight (kg) |
238 |
- Cutting
| Cutter deck size (cm) |
102 |
| Number of blades |
2 |
| Synchro or Asynchro |
Synchronous |
| height adjustment (mm) |
29-90 |
| Grass bag capacity (Litres) |
300 |
- Engine
| Engine |
OHC V-twin 4-stroke |
| Engine displacement (cc) |
530 |
| Engine model |
GCV 530 |
| Engine Rated Power (kW/rpm) |
9.7/2800 |
| Fuel tank capacity (Litres) |
8.5 |
| Engine oil capacity (Litres) |
1.3 |
| Transmission type |
Variable: Hydrostatic |
| Driving speed (km/h) |
Progressive 0 to 8.2 |
- Tyres
| Front tyres (diameter x width – rim) (inches) |
15 x 6.00 – 6 |
| Rear tyres (diameter x width – rim) (inches) |
18 x 8.50 – 8 |
| Turning radius (m) |
1.8 |
