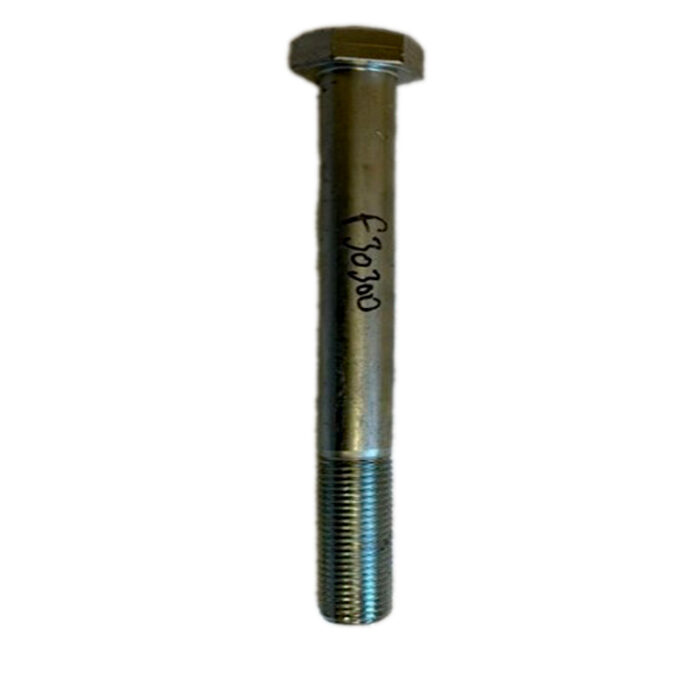

Richard Western M30X300 Bolt F30300

Richard Western M30x300 Bolt (F30300)

Heavy-Duty Fastening You Can Rely On

For critical structural connections where high strength and precision are essential, the Richard Western M30x300 Bolt (F30300) delivers outstanding performance. Manufactured to exacting standards and crafted from high tensile steel, this bolt is built to handle the demands of heavy-duty agricultural, construction, and industrial machinery.

---

Engineered for Strength and Stability

With a thread size of M30 and a total length of 300mm, this bolt offers robust load-bearing capacity for large-scale equipment and structural assemblies. The threaded length measures 85mm, giving you deep engagement in mating components and maximum clamping force for secure fastening.

The bolt features a 3.5mm thread pitch, which provides optimal grip and vibration resistance—essential in environments where machinery experiences heavy shock loads or constant movement.

---

Built with High Tensile Steel (Grade 8.8)

This bolt uses high tensile steel (grade 8.8), offering a powerful balance between strength and flexibility. It handles high torque applications with ease, while the natural finish provides clean aesthetics and resistance to mild corrosion under normal use.

---

Precision Dimensions and Tolerances

The socket width (J) across flats measures 46mm, accommodating standard heavy-duty hex tools. With a hex head height (H) of 19.12mm, the bolt allows for easy installation with stable wrench grip. It adheres to strict manufacturing tolerances, with a length tolerance of +0/-1mm and a hex height tolerance of +0/-0.84mm, ensuring consistency across batches.

---

Specifications Summary

• Thread Size: M30 (30mm)

• Total Length: 300mm

• Threaded Length: 85mm

• Thread Pitch: 3.5mm

• Socket Size (Across Flats): 46mm

• Hexagon Height: 19.12mm

• Material: High Tensile Steel (Grade 8.8)

• Finish: Natural

• Tolerance on Length: +0/-1mm

• Hex Tolerance: +0/-0.84mm

---

Model Compatibility

The Richard Western M30x300 Bolt (F30300) is suitable for use in:

• Richard Western trailers and spreaders

• Agricultural implements with high load-bearing joints

• Construction machinery (e.g., dumpers, loaders, graders)

• Structural applications in heavy transport equipment

• Industrial and OEM machines requiring long M30 bolts

• Frame, suspension, and pivot applications under stress

---
